AUDIO / Subwoofers
YOUR NEXT UPGRADE STARTS HERE.
Explore the product images and available details below. Contact the AUDIO team to confirm specifications and compatibility for your build.
Shipping and taxes confirmed before payment. No charge when you submit an order request.
ENGINEER YOUR SOUND
General Specifications
Feature: Details

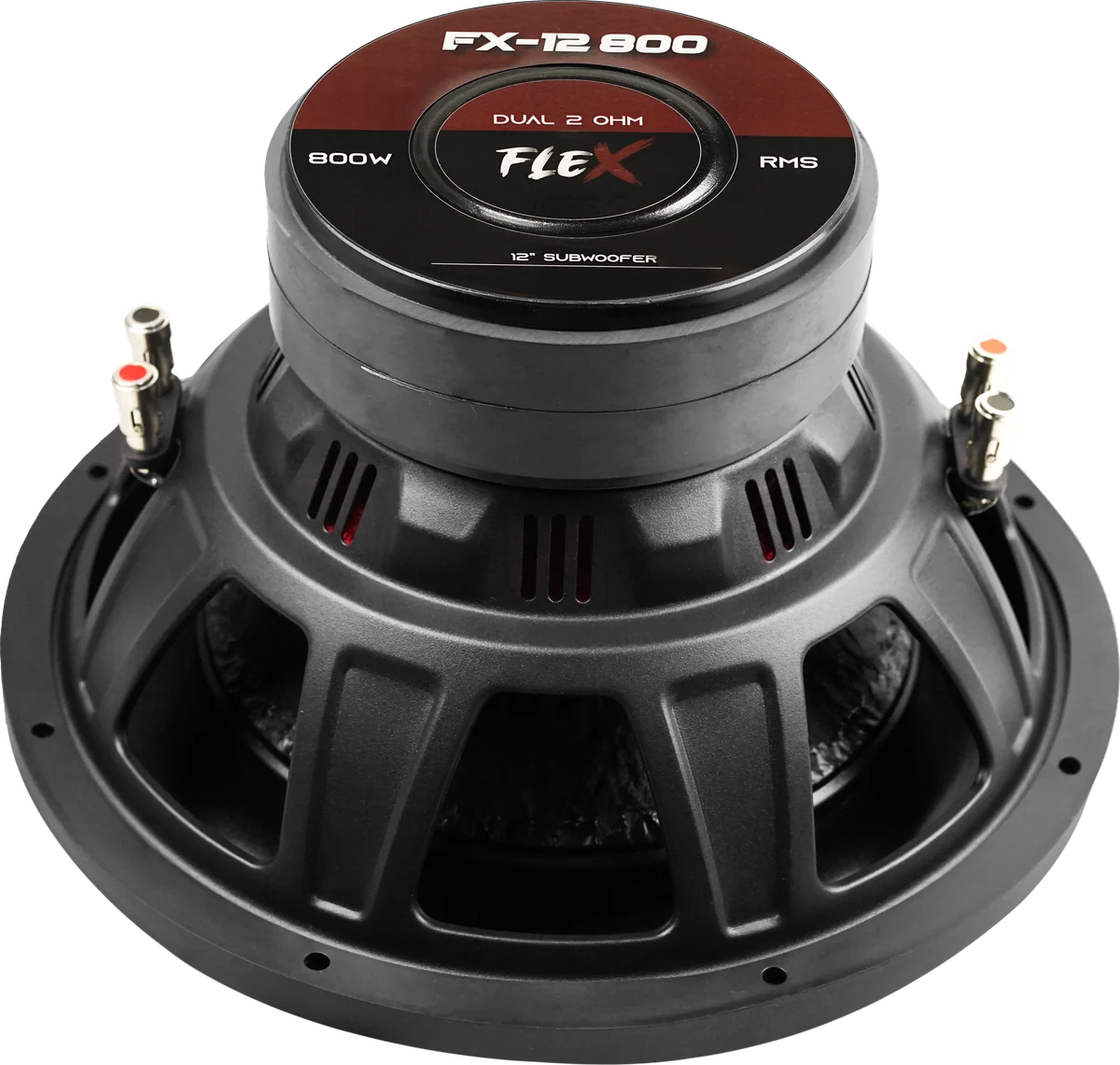

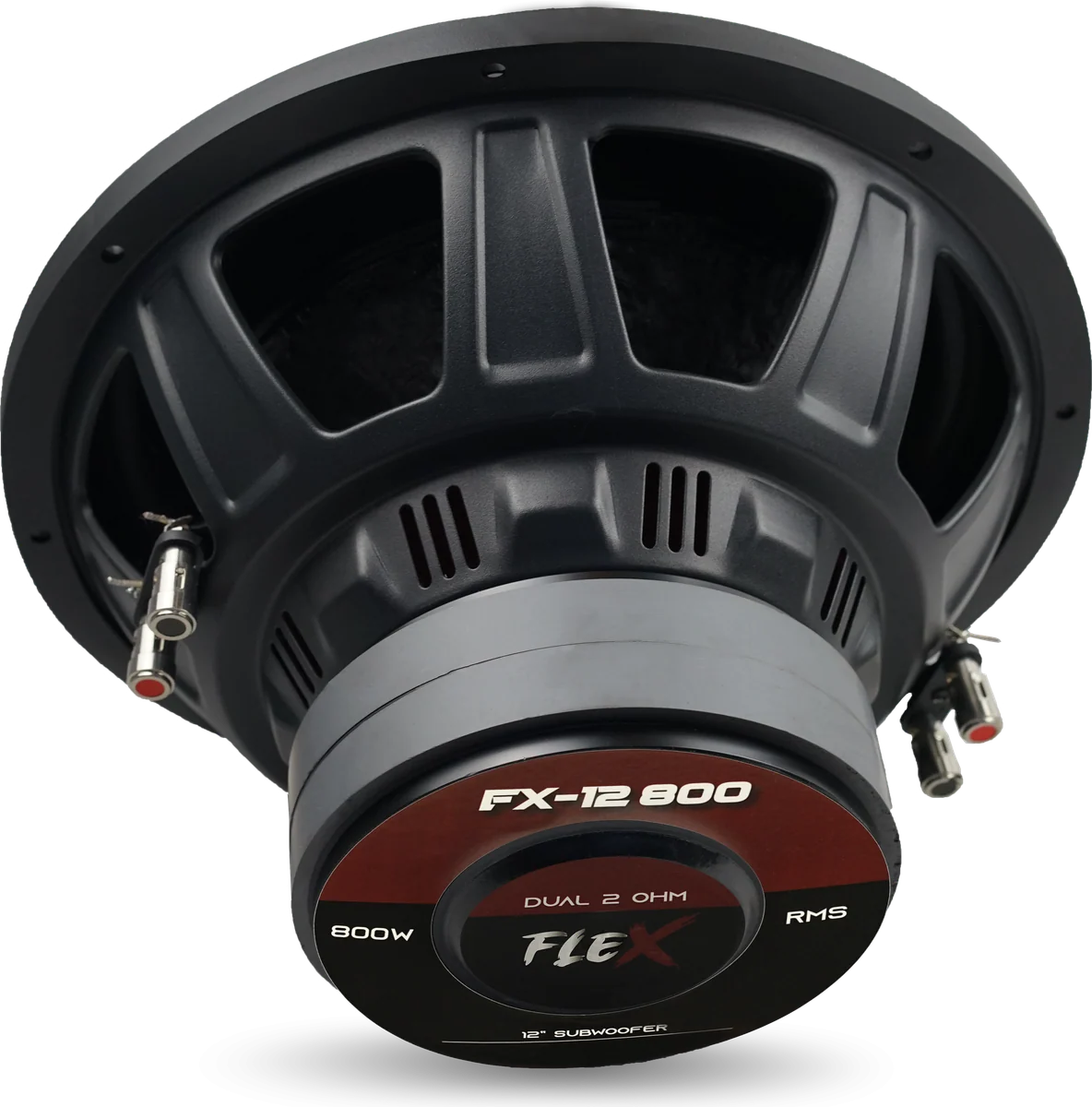

Model: FX-12 800 D2/D4
Cone Material: Pressed paper
Surround Material: Foam
Magnet Type: Ferrite
Frame Material: Stamped steel
Power RMS (Watt): 800
Power MAX (Watt): 1600
Size (inch): 12
Voice Coil Wire: CCAW
Voice Coil Size (inch): 2.5
Thiele-Small Parameters
Parameter: Value
Xmax (mm): 14
Vas (L): 36.5 / 34.3
Re (ohm): 2+2 / 4+4
Impedance (ohm): 1.8+1.8 / 3.6+3.6
Qts: 0.49 / 0.51
BL: 18.5 / 21.5
Fs (Hz): 35 / 38
SPL (dB): 88 / 88
This specified sensitivity is not directly connected with the sound pressure in the vehicle and therefore should not be used as the sole indicator for comparison with other speakers.
Need more details? Ask The published table covers D2 and D4 variants. Confirm the exact configuration with AUDIO before ordering.
| Model | FX-12 800 D2/D4 |
|---|---|
| Cone Material | Pressed paper |
| Surround Material | Foam |
| Magnet Type | Ferrite |
| Frame Material | Stamped steel |
| Power RMS (Watt) | 800 |
| Power MAX (Watt) | 1600 |
| Size (inch) | 12 |
| Voice Coil Wire | CCAW |
| Voice Coil Size (inch) | 2.5 |
| Xmax (mm) | 14 |
| Vas (L) | 36.5 / 34.3 |
| Re (ohm) | 2+2 / 4+4 |
| Impedance (ohm) | 1.8+1.8 / 3.6+3.6 |
| Qts | 0.49 / 0.51 |
| BL | 18.5 / 21.5 |
| Fs (Hz) | 35 / 38 |
| SPL (dB) | 88 / 88 |
No additional technical diagrams are published for this model. Explore the product gallery above.
